1pcs BAOFENG BF-T1 MINI Two Way Radio UHF 400-470mhz 20CH BFT1 Portable Walkie Talkie easy to carry BF T1
1pcs BAOFENG BF-T1 MINI Two Way Radio UHF 400-470mhz 20CH BFT1 Portable Walkie Talkie easy to carry BF T1
Specifications:
Item number |
BF-T1 |
General | |
Frequency Range |
UHF: 400-470MHZ |
Channel No. |
20 |
Frequency Stability |
±2.5ppm |
Step Frequency |
12.5 / 25Kz |
Antenna Impedance |
50Ω |
Operating Voltage |
DC 3.7V |
Work Temperature |
-20C to +60C |
Battery Capacity |
H-1500mAH (Li-ion battery) |
Battery Lift |
About 12 Hours |
Dimension（W x H x D） |
108 x 55 x 21 mm （including antenna） |
Weight |
120g（including battery, antenna） |
Transmitter | |
Output power |
0.5W / 1W |
Modulation Mode |
16kΦF3E / 11kΦF3E |
Maximum deviation |
＜5kHz(Wide) / ＜2.5kHz(Narrow) |
Spurious Radiation |
＜7.5μW |
Adjacent Ch. power |
≤-65dB(Wide) / ≤-60dB(Narrow) |
Audio Distortion |
< 5% |
SNR |
≥ -45dB / ≥ -40dB |
CTCSS/DCS Frequency deviation (W/N Band) |
0.7±0.1kHz(Wide) / 0.4±0.1kHz(Narrow) |
Intermediation sensitivity |
8-12mV |
Transmitting Current |
≤ 1000mA |
Receiver | |
Sensitivity |
< 0.25μ V (12dB SINAD) |
Audio Power |
1W |
Inter modulation Interference Resistance |
≥ 65dB (W) , ≥ 60dB (N) |
Adjacent channel Selectivity (W/N Band) |
≥ 65dB (W) , ≥ 55dB (N) |
Audio Distortion |
5% |
Receiving current |
≤ 380m A |

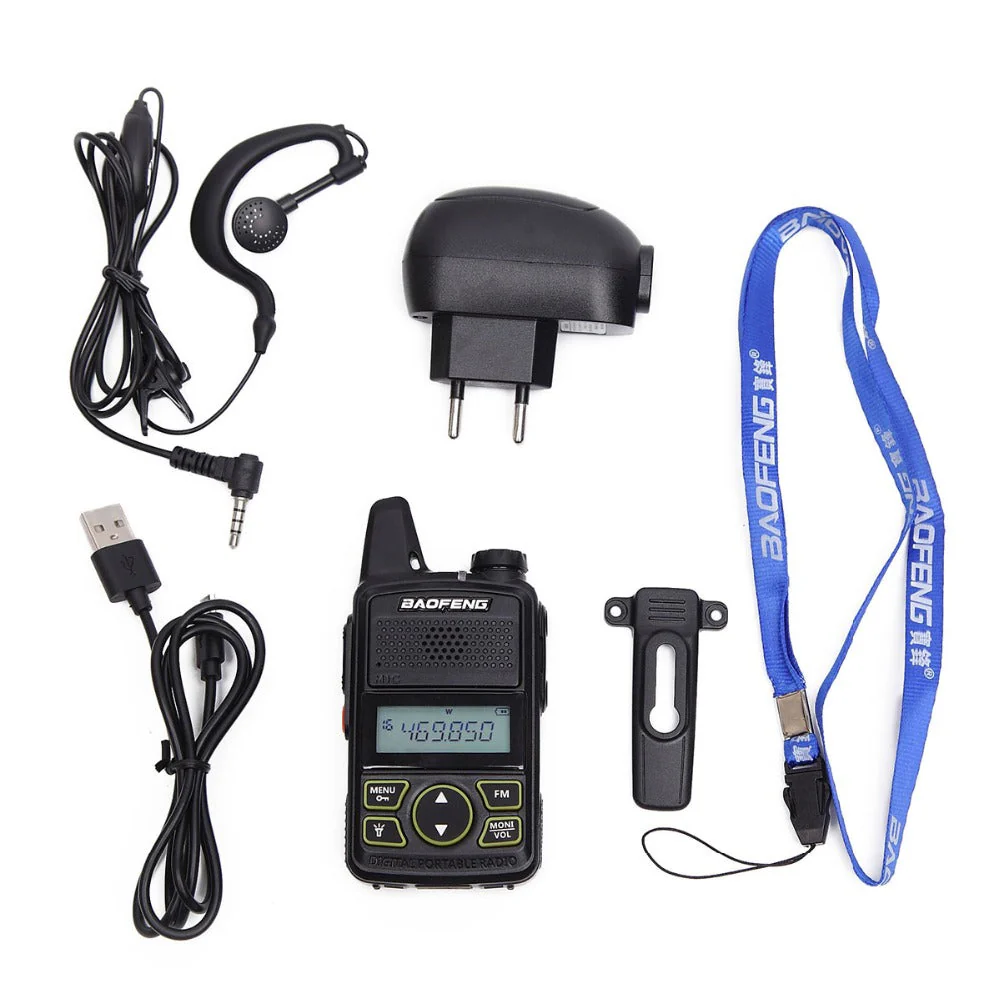

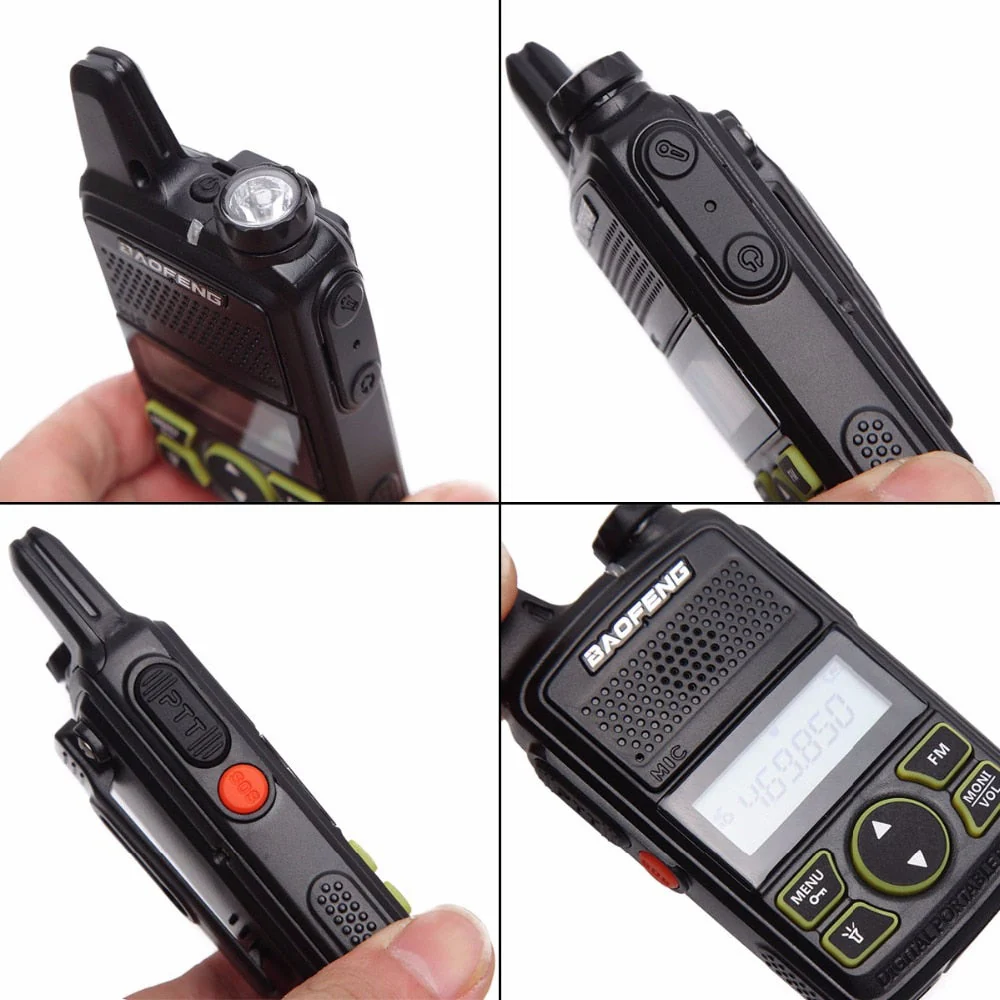

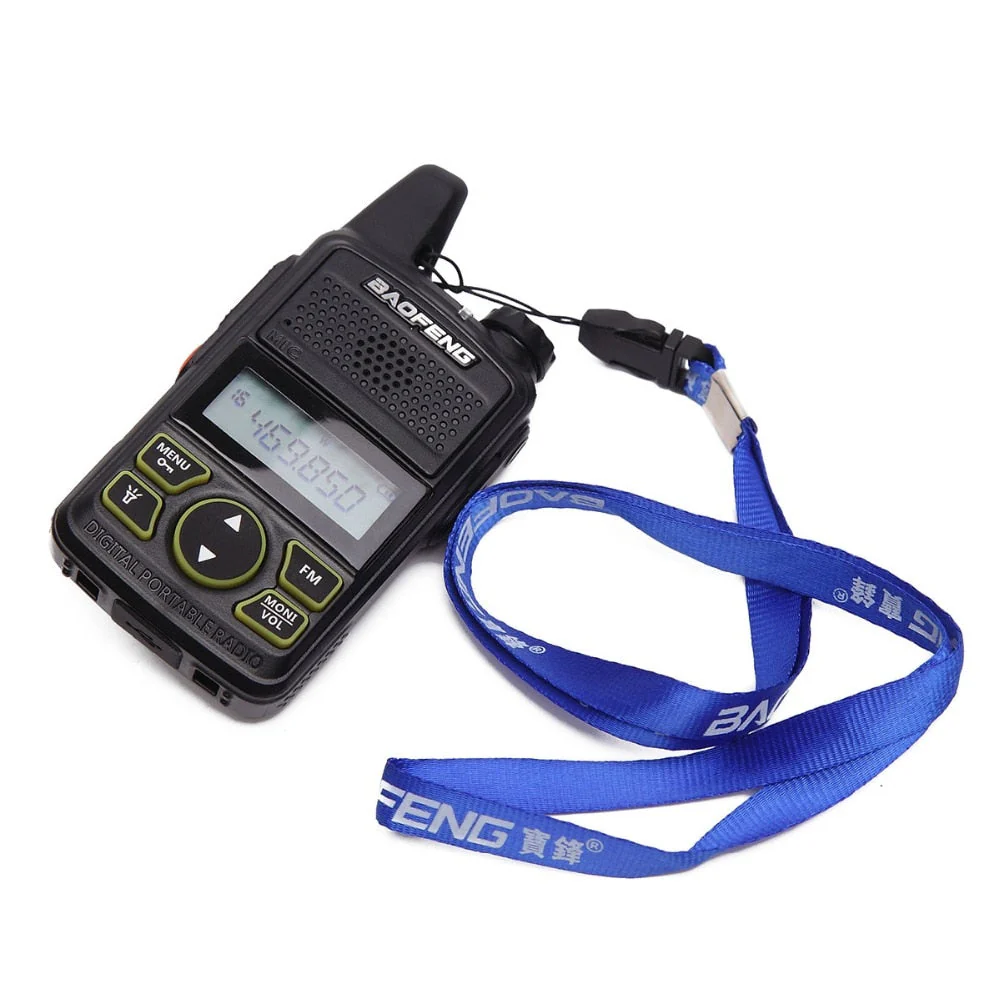

More Images
1pcs BAOFENG BF-T1 MINI Two Way Radio UHF 400-470mhz 20CH BFT1 Portable Walkie Talkie easy to carry BF T1
Specifications:
Item number |
BF-T1 |
General | |
Frequency Range |
UHF: 400-470MHZ |
Channel No. |
20 |
Frequency Stability |
±2.5ppm |
Step Frequency |
12.5 / 25Kz |
Antenna Impedance |
50Ω |
Operating Voltage |
DC 3.7V |
Work Temperature |
-20C to +60C |
Battery Capacity |
H-1500mAH (Li-ion battery) |
Battery Lift |
About 12 Hours |
Dimension（W x H x D） |
108 x 55 x 21 mm （including antenna） |
Weight |
120g（including battery, antenna） |
Transmitter | |
Output power |
0.5W / 1W |
Modulation Mode |
16kΦF3E / 11kΦF3E |
Maximum deviation |
＜5kHz(Wide) / ＜2.5kHz(Narrow) |
Spurious Radiation |
＜7.5μW |
Adjacent Ch. power |
≤-65dB(Wide) / ≤-60dB(Narrow) |
Audio Distortion |
< 5% |
SNR |
≥ -45dB / ≥ -40dB |
CTCSS/DCS Frequency deviation (W/N Band) |
0.7±0.1kHz(Wide) / 0.4±0.1kHz(Narrow) |
Intermediation sensitivity |
8-12mV |
Transmitting Current |
≤ 1000mA |
Receiver | |
Sensitivity |
< 0.25μ V (12dB SINAD) |
Audio Power |
1W |
Inter modulation Interference Resistance |
≥ 65dB (W) , ≥ 60dB (N) |
Adjacent channel Selectivity (W/N Band) |
≥ 65dB (W) , ≥ 55dB (N) |
Audio Distortion |
5% |
Receiving current |
≤ 380m A |
